10km range 15ms latency UAV Data link radio transmitter support Pixhawk and QGroundControl

Name: 10km range 15ms latency UAV Data link radio transmitter support Pixhawk and QGroundControl
Brand: IFLY
Price: 1 USD

China 10km range 15ms latency UAV Data link radio transmitter support Pixhawk and QGroundControl wholesale

Brand Name : IFLY

Model Number : FIM-2410

Certification : FCC,CE

Place of Origin : CHINA

MOQ : 1Set

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 3-5days

Packaging Details : 1set/carton

Distance : 10km

Delay : 15ms latency

Encryption : AES-128Bit

Video Output : Ethernet and HDMI

Rx Video Show : By PC and HDMI Monitor

Fly Control : Pixhawk and QGroundControl

Production Name : UAV Data link radio transmitter

Video Input : HDMI

Contact Now

10km range 15ms latency UAV Data link radio transmitter support Pixhawk and QGroundControl

Introduction

FIM-2410 TDD_COFDM is our new mini pure digital wireless transmission equipment with advanced processing technology and time division COFDM modulation technology, providing two-way encryption (support AES_128 encryption ) the integrity of the network data transmission channel, the perfect realization of real-time, anti multi-path, high-speed movement of data, voice, image transmission. The product has the advantages of small volume, light weight, especially for application UAV system, high-speed railway, moving vehicles,and other complex environments.

10km range 15ms latency UAV Data link radio transmitter support Pixhawk and QGroundControl

Key Features

1	Long transmission distance more than 10km
2	Support high speed move more than 600km/h
3	Level of broadcast TV/monitor's HD video encoding: HDMI/SDI/CVBS adaptive. 1080P/1080I/720P/576P adaptive.
4	Adjustable bandwidth 4/8Mhz: multi-bandwidth, multi-rate, multi-mode
5	Multiple encryption to avoide illegal reception
6	Small design: compact, light and integrated
7	Ultra low power consumption
8	Duplex data transmission support TTL/SBUS/Telemetry/MAVLINK/RS232 protocol
9	Support UDP Multicast/TCP/IP
10	Supply 2way LAN Link

Specification

Frequency	2.3Ghz/2.4GHZ(2.402-2.478GHz)/2.5Ghz for your option
Wireless Fault-tolerant	LDPC FEC
RF Transmitted Power	1Watt
Power Consumption	TX: 7Watts
Power Consumption	RX: 5Watts
Frequency Bandwidth	4/8MHz
Latency	≤15-30ms
Receive Sensitivity	-100dbm ~ -90dbm
Video Color Space	Default 4:2:0
Antenna	1T1R
Video Input/output Interface	HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX
Video Compressed Format	H.264+H.265
Bitrate	Software adjustment
Encryption	AES 128
Transmission Distance	Air to ground 10-15km
Start-up time	< 30s
Two-way function	Support video and duplex data simultaneously
Data	Support SBUS/MAVLINK/Telemetry/TTL
Power supply	DC 7- 18V
Interface	1080P/60 HDMI Mini RX x1
	100Mbps Ethernet to USB / RJ45 on Windows × 1
	S1 TTL bidirectional serial port x1
	Power Input x1
Indicator Light	HDMI input/output Status
	Transmitting and receiving
	Video board working Status
	Power
HDMI	HDMI mini/Flexible Flat Cable(FFC)
Temperature Range	Operating temperature: -40°C ~+ 85°C
Temperature Range	Storage temperature: -55°C ~+ 100°C
Appearance Design	CNC technology/ double aluminum alloy shell with waterproof design
Dimension	72×47×19mm
Weight	Tx: 94g/Rx: 94g

Application

1	Aerial video production and cinematography
2	Industrial and commercial inspection
3	Surveillance and security
4	Real estate assessment and supervision
5	Search and rescue
6	First responder situation evaluation
7	Crowd control
8	UAV enthusiast recreation

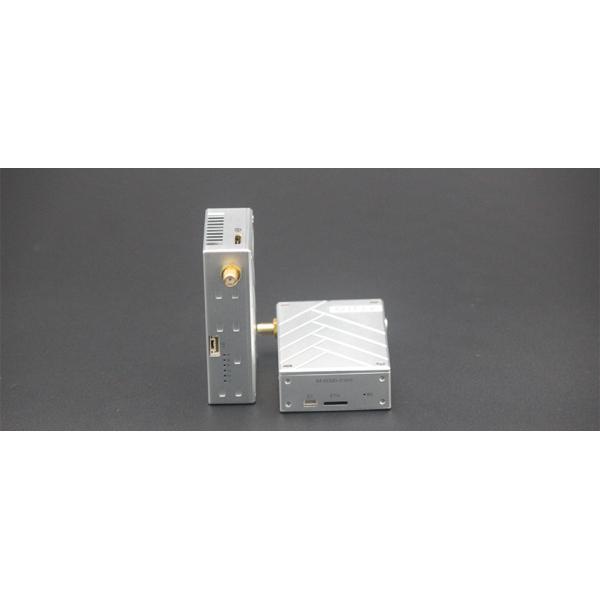

10km range 15ms latency UAV Data link radio transmitter support Pixhawk and QGroundControl Images
