30dBm Telemetry TDD COFDM Video Transmitter for HD Video and MAVLINK Data for 10km

Name: 30dBm Telemetry TDD COFDM Video Transmitter for HD Video and MAVLINK Data for 10km
Brand: IFLY
Price: 1 USD

China 30dBm Telemetry TDD COFDM Video Transmitter for HD Video and MAVLINK Data for 10km wholesale

Brand Name : IFLY

Model Number : FIM-2410

Place of Origin : CHINA

MOQ : 1Set

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 3-5days

Packaging Details : 1set/carton

RF Power : 30dBm

Modulation : TDD COFDM

Application : COFDM Video Transmitter

Range : 10km

Signal : HD Video and MAVLINK Data

Antenna : Omni Antenna

Tx Antenna : 5dbi small antenna

Serial Data : Bi-directional data

Contact Now

30dBm Telemetry TDD COFDM Video Transmitter for HD Video and MAVLINK Data for 10km

Introduction

This extremely small professional UAV COFDM transmitter fits in any UAV/Drone/UAVs/Helicpter/FPV/Multirotor aerial. It is the world’s fastest (delay 15-30 ms only) COFDM video transmitter. Together with our mini COFDM receiver, it forms a very professional unit to work well with Pixhawk fly control system. The power output of 1000 mW ensures trouble-free transmission up to 10-15 km with -100bm@4Mhz receiving sensitivity. Double Antenna design to ensure the UAV no matter what direction it fly, the signal transmission is very smooth and stable.

30dBm Telemetry TDD COFDM Video Transmitter for HD Video and MAVLINK Data for 10km

Key Features

1	Support Pixhawk Auto Polit System
2	Adopt high-speed wireless transmission technology, low latency, and long transmission range.
3	Support standard HDMI video and IP Camera video double video stream wireless transmission
4	Support Duplex data transmitting by TTL/SBUS/Telemetry/RS232/MAVLINK
5	Connect with ground station by TTL to USB cable
6	H.264+H.265+TS Stream Image compression technology, High-quality intensive compression, up to broadcasting-level image.
7	Switching the channels by software.
8	Support software upgrade.
9	Working temperature range: -40~+85°C
10	Omni antenna receiving, good resistance to multipath.
11	Support wide voltage access, Flexible wiring.
12	Metal housing with mounting holes for easy installation.

Specification

Transmission Power	1W
Transmission frequency	2.402 – 2.478 GHz
Signal bandwidth	4MHz, 8 MHz
Transmission rate	3.3 – 5 MBit/sec
Delay time	15-30ms
Video Input	HDMI, Ethernet, CCVBS(Using a mini converter)
Video standard	HDMI, IP, PAL/NTSC
Compression	H.264 +H.265+TS Stream Format
Modulation	COFDM (QPSK, 16 QAM, 64 QAM)
Encryption	AES 128/256 bits
Power consumption	TX:7Watts/RX:5Watts
Power supply	7 – 18V DC
Video IN	Mini HDMI and Mini Rj45
Video Out	Mini HDMI and Mini Rj45
Antenna	Double SMA Interface
Data	Bidirectional Serial Port
Flay control System	Pixhawk
Weight	TX/RX: 93g/93g
Operating Temperature	-45°C – +85°C

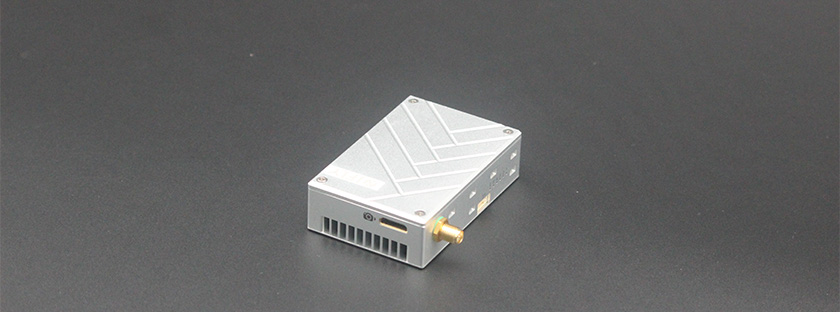

30dBm Telemetry TDD COFDM Video Transmitter for HD Video and MAVLINK Data for 10km Images
